Actions

🎛️ Overview

Actions are the heart of PedalinoMini - they define what happens when you interact with your pedals and switches. Each action maps a specific event (like pressing a button or moving a pedal) to a MIDI command or special function.

⚙️ Setting Up Actions

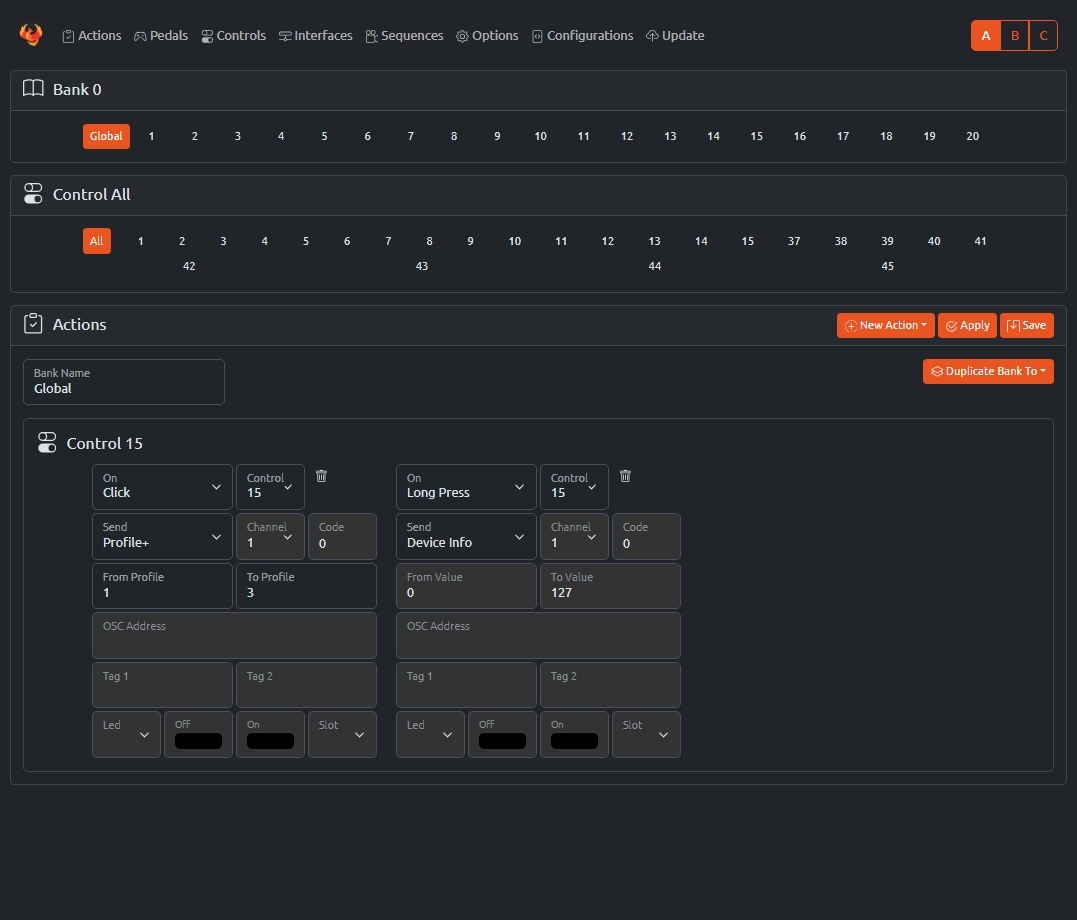

After configuring your Controls, follow these steps to create Actions:

1. Select a Bank 📚
2. Choose a bank from the dropdown menu in the top left corner
3. Bank 0 is the "global bank" - actions defined here are always active across all banks

4. Banks 1-20 contain bank-specific actions

5. Select a Control 🎮

6. From the top right dropdown, choose which control to configure

7. Select "All" to view all actions in the current bank

8. Name Your Bank ✏️ (Optional)

9. Enter a descriptive name for the current bank to help identify its purpose

10. Add New Actions ➕

11. Click "New Action" button
12. Select the control from the dropdown menu that will trigger this action

🔄 Event Types

Each control can trigger different events based on how you interact with it:

Control Type	Supported Events
Momentary/Latch/Ladder switches	PRESS, RELEASE, CLICK, DOUBLE CLICK, LONG PRESS, REPEAT PRESSED, LONG RELEASE
Analog expression pedals	MOVE

Note: Events must be enabled in the Pedals configuration for actions to trigger properly

📋 Action Configuration Fields

Field	Description
On	Specifies which event triggers the action
Control	The specific control that will trigger this action
Send	Defines what happens when the action is triggered (MIDI message or special function)
From Value/To Value	Defines the value range for the action
Tags When Off	Custom label shown when the action is in "off" state
Tags When On	Custom label shown when the action is in "on" state
Led	Configure visual feedback with LED number and colors

💡 Special Note for Analog Pedals

Leave the "Send" field blank to enable universal mode, which allows the pedal to modify the last sent MIDI message (particularly useful for adjusting the value of the last CONTROL CHANGE).

🎯 Action Types & Parameters

Action	Emoji	MIDI Channel	MIDI Code	From	To
Program Change	🎹	Channel	PC#	-	-
Control Change	🎛️	Channel	CC#	From Value	To Value
Control Change Snap	📸	Channel	CC#	From Value	To Value
Note On	🎵	Channel	Note	Velocity	-
Note Off	🔇	Channel	Note	Velocity (+)	-
Bank Select+	📚	Channel	MSB	From MSB	To LSB
Bank Select-	📚	Channel	MSB	From MSB	To LSB
Program Change+	🎹	Channel	-	From PC#	To PC#
Program Change-	🎹	Channel	-	From PC#	To PC#
Pitch Bend	↕️	Channel	-	-	-
Channel Pressure	👆	Channel	-	-	-
MIDI Clock Master	⏱️	-	-	-	-
MIDI Clock Slave	⏱️	-	-	-	-
MIDI Clock Off	⏱️	-	-	-	-
Start	▶️	-	-	-	-
Stop	⏹️	-	-	-	-
Continue	⏯️	-	-	-	-
Sequence	📋	-	Sequence #	-	-
Step By Step+	👣	-	-	-	-
Step By Step-	👣	-	-	-	-
Bank+	🔄	-	-	From Bank	To Bank
Bank-	🔄	-	-	From Bank	To Bank
MTC Master	🎬	-	-	-	-
MTC Slave	🎬	-	-	-	-
MTC Off	🎬	-	-	-	-
MTC Start	🎬	-	-	-	-
MTC Stop	🎬	-	-	-	-
MTC Continue	🎬	-	-	-	-
Tap	👇	-	-	-	-
BPM+	🥁	-	-	-	-
BPM-	🥁	-	-	-	-
OSC Message	📡	-	-	-	-
Profile+	👤	-	-	From Profile#	To Profile#
Profile-	👤	-	-	From Profile#	To Profile#
Set Led Color	💡	-	-	-	-
Repeat	🔁	-	-	-	-
Repeat Overwrite	🔁	Channel	-	From Value	To Value
Device Info	ℹ️	-	-	-	-
Power On/Off	🔌	-	-	-	-

Legend

• (-) Not used
• (+) If velocity is not zero it is equivalent to NOTE ON
• MSB is the Most Significant Byte, a fixed value from 0 to 127
• LSB is the Less Significant Byte, the variable value from 0 to 127

🔍 Tips

• Use "Bank 0" for actions you want available in all banks (like bank switching controls)
• Organize your banks by musical parts, songs, or gear configurations
• Use meaningful tags to help identify what each action does during performance
• Consider color-coding LEDs based on function type (e.g., blue for bank switching, red for looper controls)
