Controls Setup

Controls

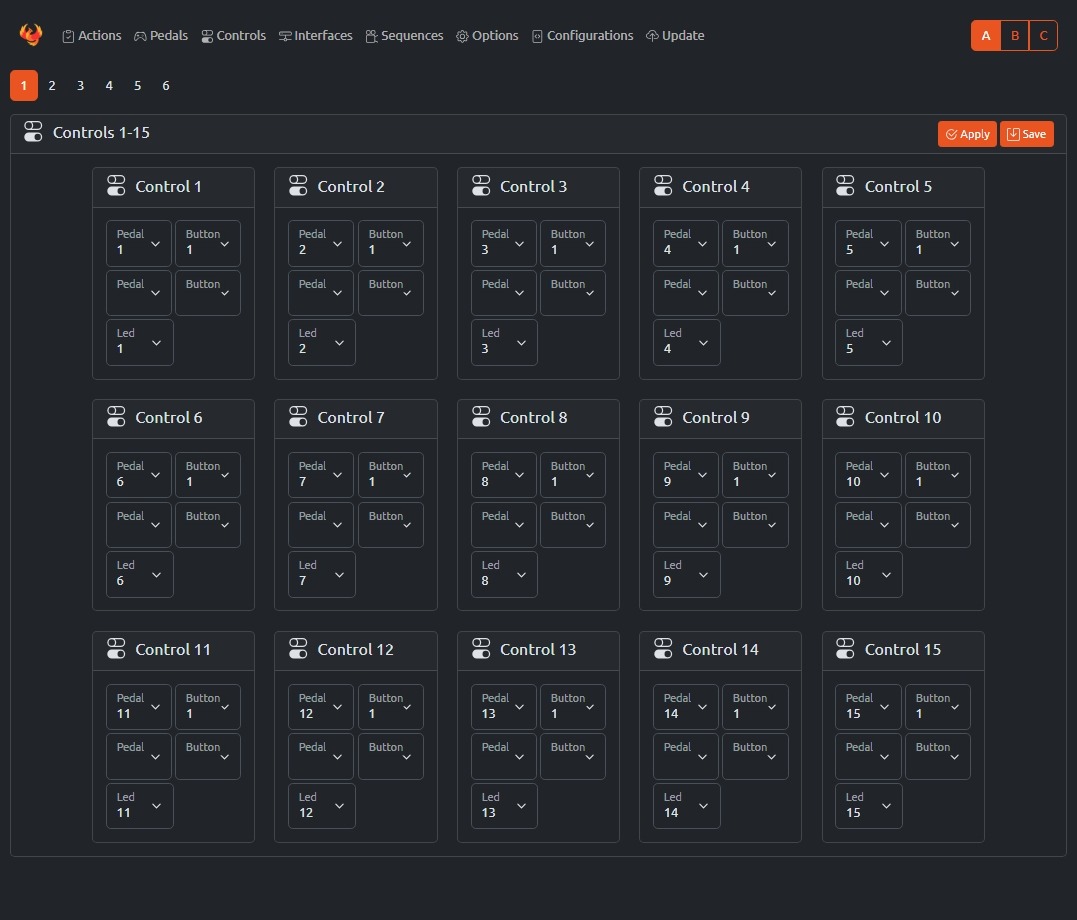

Controls represent individual switches or inputs on a pedal - for example, the second button on pedal 4 would be considered one control.

All actions in PedalinoMini are triggered by controls, which means that every input source (including analog pedals) must be configured as a control to function properly.

Hardware Note: Due to technical limitations, simultaneous presses cannot be detected when using two switches on the same LADDER pedal. However, you can successfully use simultaneous presses between switches on different pedals of any type.

Each control can be assigned a default LED number, creating a logical link between the physical switch and its visual indicator. This feature simplifies hardware wiring while maintaining an organized relationship between controls and their status indicators.
